| Grade | FR-FS12 |

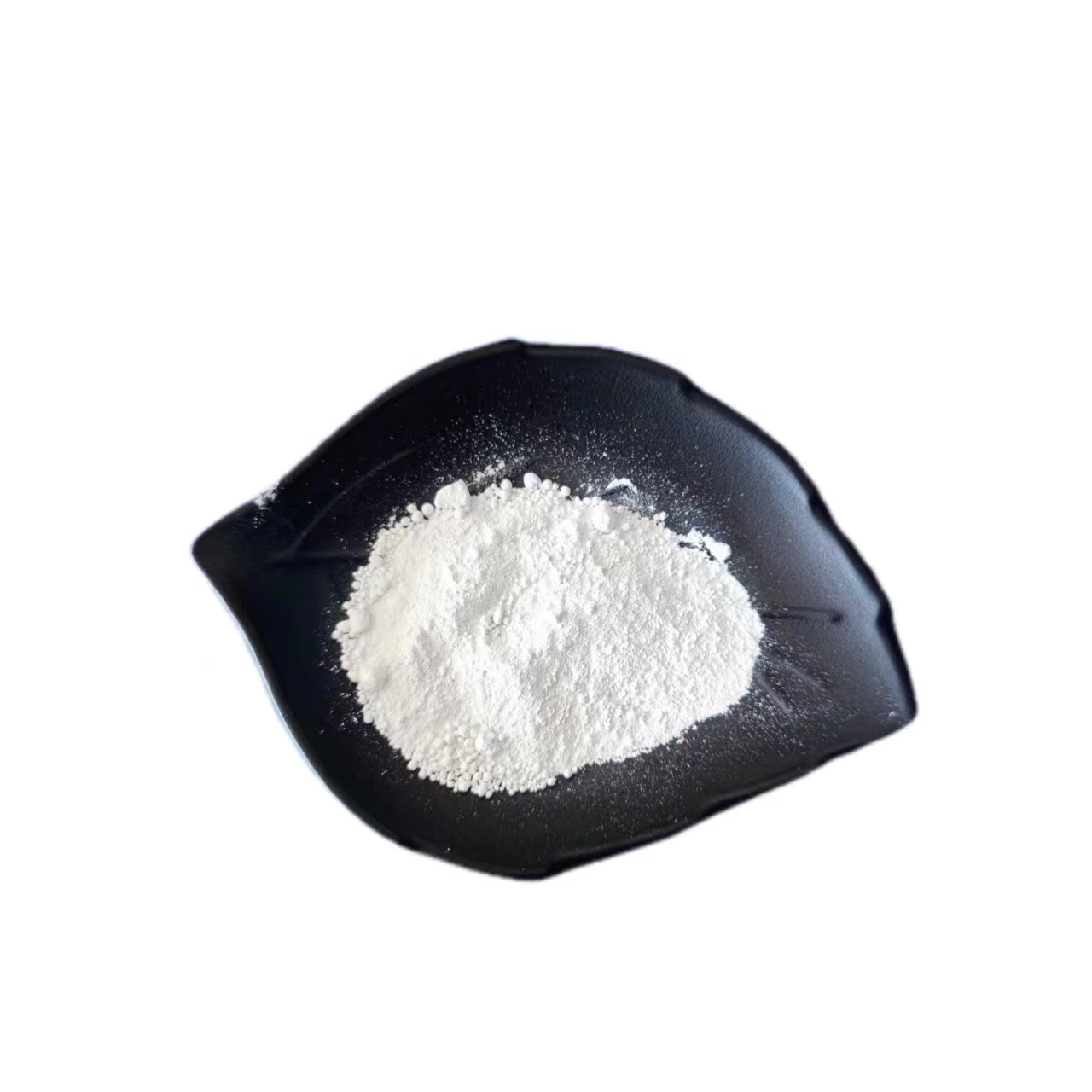

| Appearance | White Powder |
| Whiteness (%) | ≥92.0 |
| Moisture (w/%) | ≤1.0 |
| Particle Size D50 (μm) | ≤5.0 |
FR-FS12 is a new and high-performance inorganic powder flame retardant. Utilizing advanced nanotechnology, FR-FS12 has been treated with a surface coating to improve its compatibility with resins. When combined with brominated flame retardants, it achieves excellent effects. With an addition of 1.0~1.1 phr, it can replace 1 phr of antimony trioxide in modified plastics such as ABS, PBT, PET and PA products, polyester and styrene polymers, achieving the same flame resistance effect as antimony trioxide without affecting mechanical properties and electrical properties.
| Materials | 1# | 2# |
| ABS |
77.4 |
77.4 |
| Brominated Triazine | 14 | 14 |
| Sb2O3 | 3 | 0 |
| FR-FS12 | 0 | 3 |
| Antioxidant 168 | 0.2 | 0.2 |
| Antioxidant 1010 | 0.2 | 0.2 |
| Anti-dripping Agent | 0.2 | 0.2 |
| High Rubber Powder | 5 | 5 |
| Total | 100 | 100 |
| Test Item | Standard | Unit | 1#(Sb2O3) | 2#(FR-FS12) |
| Tensile Strength | GB/T 1040-06 | Mpa | 41.92 | 41.62 |
| Flexural Modulus | GB/T 9341-08 | Mpa | 2329 | 2378 |
| Notch Impact Strength | GB/T 1043-1-08 | KJ/m2 | 18.56 | 18.35 |
| Flame Retardant Performance | UL94 | 1.6mm | V0 | V0 |
| T1+T2 | S | 23.5 | 24.1 |
Comply with the requirements of RoHS and REACH restriction.
1. Compound paper plastic bag lined with PE film: 25kg/bag.
2. It needs to be sealed and moisture-proof, and recommended to be stored in a dry place.
3. Storage and transportation temperature: <90℃.
4. The minimum shelf life: 24 months.
